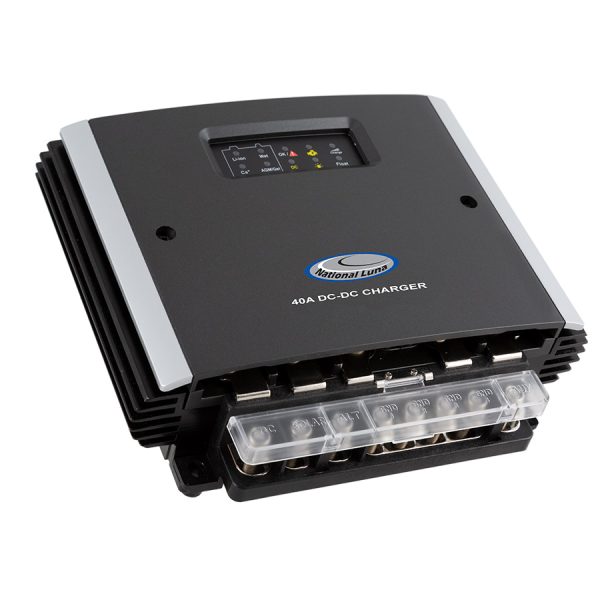

NLDC-40 Dual Battery Isolator And Charger

The NLDC-40 from National Luna is a DC to DC battery charger and isolator for a dual-battery system.  It will charge an auxiliary or service battery from a vehicle alternator, Solar panel or auxiliary DC source up to 40A output current.  Traditional 12V and 24V vehicle alternators as well as variable voltage alternators are supported.

Features:

• True 40A output current
• 6-stage intelligent charge algorithm
• Supports AGM, Gel, Wet, Calcium, Lithium Ion/LiFePO4 batteries
• Alternator input up to 32V
• 40A, 600W MPPT solar regulator
• Supports solar panels up to 42V
• Separate auxiliary DC input up to 32V
• Smart-alternator compatible
• Battery temperature compensation for safe charging
• Sealed to IP67 rating (waterproof)
• Replaceable terminal block
• Short-circuit protected
• Reverse-polarity protected
• Over-voltage protected
• Over-temperature protected

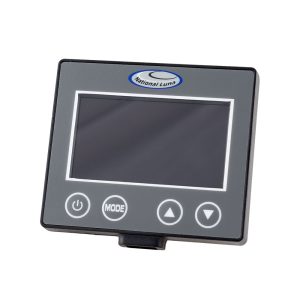

• Optional remote monitor

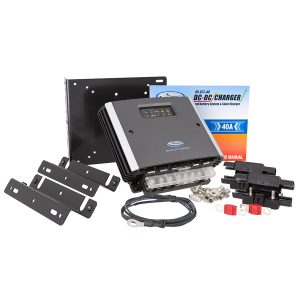

In the box:

• NLDC-40 DC-DC charger
• Universal mounting plate & fixtures
• In-line fuses & holders
• Temperature compensation probe
• Ferrite ring (further reduces radio interference)
• Installation kit including lugs and screws
• Installation manual

……….    ……….
Manual Download
