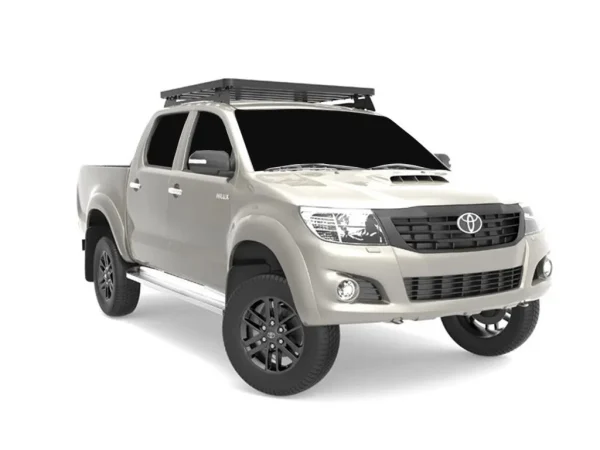

Toyota Hilux – Slimline II Roof Rack Kit

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. The vehicle specific foot rails have openings for storing compatible gear under the rack such as Front Runner tables.

These Foot Rails contain 1 opening to access a Front Runner under rack mount table (1 smaller Pro Stainless Steel Prep Table Kit or 1 larger Pro Stainless Steel Camp Table Kit).

All Front Runner Racks are backed by a Limited Lifetime Warranty*

SPECS

Consisting of:

1 x FATH001 – Toyota Hilux (2005-2015) Foot Rails – by Front Runner
1 x RRSTA07 – Slimline II Tray – 1165mm(W) X 1358mm(L) – by Front Runner

Material used:

Black epoxy powder-coated T6 aluminium
High strength steel

Approximate Installed Weight 24kg (54lbs)

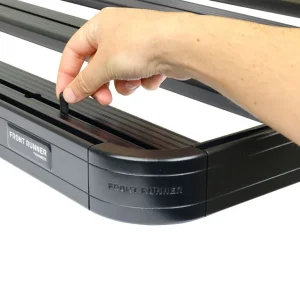

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width 450mm (18″)
Length 1615mm (64″)
Height 140mm (6″)

Shipping Weight:

Weight 28.3kg (62.3lbs)
