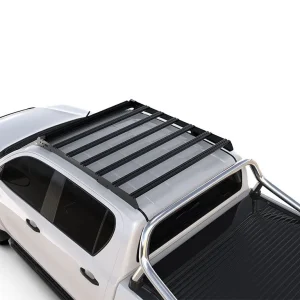

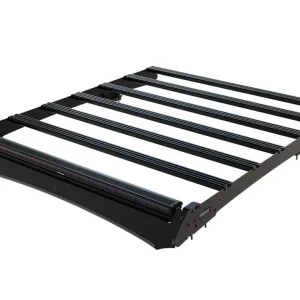

- This low-profile flat deck Slimsport rack has a load carrying area of 1386mm (54.6″) x 1147mm (45.2″).

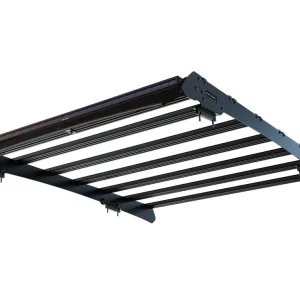

- The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
- The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories.
- Easily add on the Slimsport/Slimpro Van Side Mount Accessory Bracket / Small – by Front Runner for most Front Runner side mount accessories.

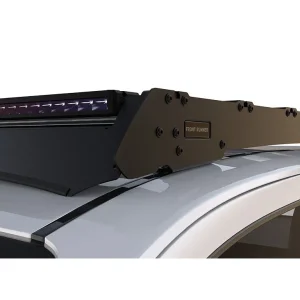

- The included 40″ Light Bar wind fairing with rubber edge trim, makes the rack ultra-quiet.
- Included in the Toyota Hilux DC Slimsport is a 40″ cutout to allow the use of the 40″ LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount.
- Fitment guide and all mounting hardware included.
- 6″/T30 Torx Allen Key for Slimsport Rack is required for installation.
- Note: Drilling required.
- Note: Under Rack Tables are not compatible with the Slimsport rack kit range.
All Front Runner Racks are backed by a Limited Lifetime Warranty*
SPECS
Consisting of:
1x KSTH002 – Toyota Hilux (2022-Curr) SlimSport Roof Rack Kit
1x RRAC245 – Toyota Hilux Slimsport Rack 40″ L Bar Wind Fairing
1x RRAC971 – Protection Strip
Material Used:
Black epoxy powder – coated T6 aluminium
High strength steel
Approximate Installed Weight: 24 kg (53.69lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4″-2.8″) to the highest point of your roof.
Shipping Dimensions:
Width: 330mm (13″)
Length: 1700mm (67″)
Height: 160mm (06″)
Shipping Weight:
Weight: 25kg (55lbs)
