Volkswagen Amarok Single Cab – Slimline II RSI Canopy Rack Kit

This kit includes a full-size rack for the RSI Canopy when fitted to the Volkswagen Amarok. The rack size is approximately 1255mm/49.4″ (W) x 1762mm/69.4″ (L). The Slimline II Tray mounts to supplied feet that slide into the canopy track.

All Front Runner Rack Kits contain installation instructions and all of the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Note: RSI Canopies are color-coded to your vehicle and have a lead time of 10 working days to manufacture.

SPECS

Consisting of:

3 x FASS024 – Foot Set / 50mm-60mm – by Front Runner
3 x RRAC921 – Canopy Rack Kit Installation Set
1 x RRSTD09 – Slimline II Tray – 1255mm(W) X 1762mm(L) – by Front Runner

Material Used:
Black epoxy powder – coated T6 aluminium
High strength steel

Approximate Installed Weight: 27.3kg (60.3lbs)

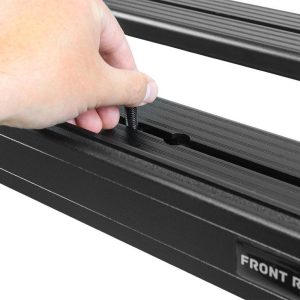

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 455mm (18.0″)
Length: 1610mm (63.0″)
Height: 205mm (8.0″)

Shipping Weight:
29.8kg (65.0lbs)
