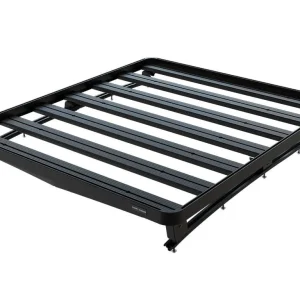

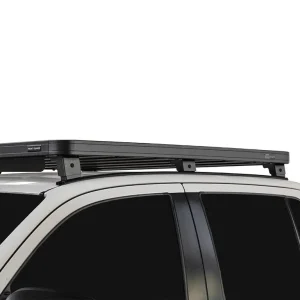

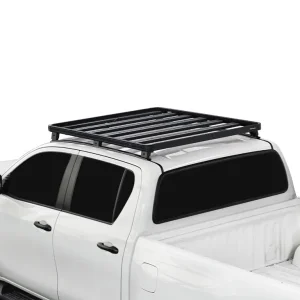

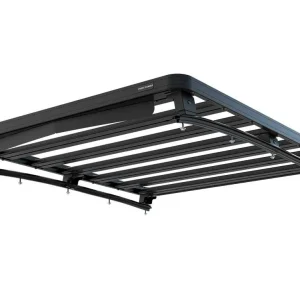

Toyota Hilux Revo DC – Slimline II Roof Rack Kit

This 1358mm/53.5″ long, full-size, Slimline II Roof Rack Kit contains the Slimline II Tray, Wind Deflector, two (2) Tracks, and six (6) Feet to mount the Slimline II Tray to your 2016-Current Toyota Hilux Revo DC.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a limited lifetime warranty.*

Note: Drilling is required for installation.

SPECS

Consisting of:
2x FASS024 – Foot Set / 50mm – 60mm
1x FASS015 – Foot Set Angled / 75mm
1x RRSTA07 – SLII Tray – 1165mm(W)X1358mm(L)
1x TRTH006 – Toyota Revo DC (2016-Curr) Tracks/1300mm(L)

Material Used:
Black epoxy powder – coated T6 aluminium
High strength steel

Approximate Installed Weight: 25.75kg (56.77lbs)

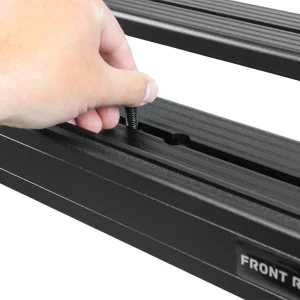

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 440mm (17″)
Length: 1730mm (68″)
Height: 275mm (11″)

Shipping Weight:
Weight: 27kg (59lbs)
