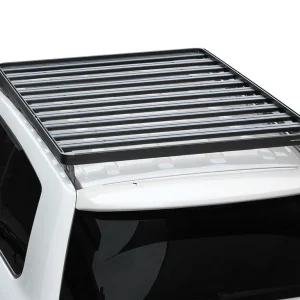

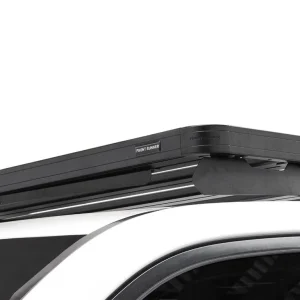

Toyota Land Cruiser 200/Lexus LX570 – Slimline II Roof Rack Kit / Low Profile

This 2166mm/85.3″ long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Low Profile Foot Rails to mount the Slimline II Tray to your Toyota Land Cruiser 200 or Lexus LX570. It easily installs using the existing factory mounting points. No drilling required.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Note: Under Rack Tables can not be fitted to this Low Profile Kit.

Note: Not suitable for models with rear shark Fin Antenna.

Note: Some side mount accessories are not suited for low profile foot rails such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets.

SPECS

Consisting of:

1 x FATL003 – Toyota Land Cruiser 200 Foot Rails / Low Profile – by Front Runner

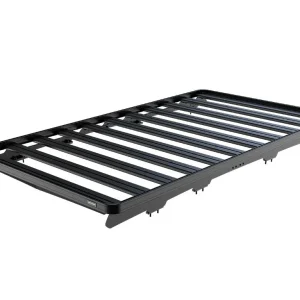

1 x RRSTD11 – Slimline II Tray – 1255mm(W) X 2166mm(L) – by Front Runner

Material Used:
Black epoxy powder – coated T6 aluminium
High strength steel

Approximate Installed Weight: 38.6kg (85.0lbs)

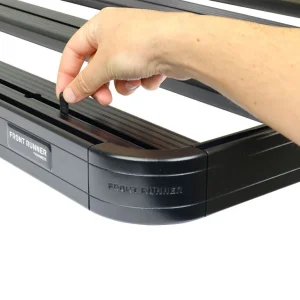

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 450mm (18.0″)
Length: 1725mm (68.0″)
Height: 250mm (10.0″)

Shipping Weight:
39.0kg (86.0lbs)
