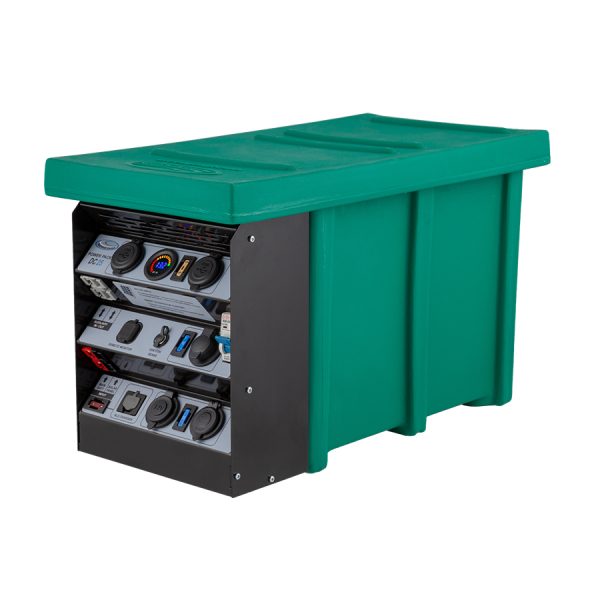

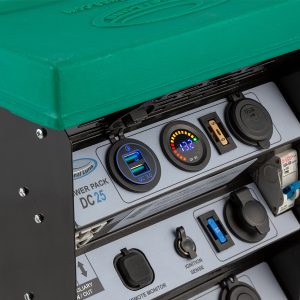

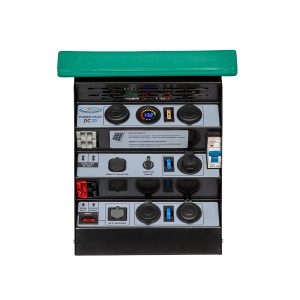

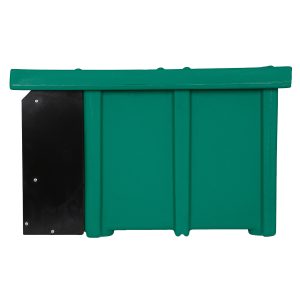

Power Pack DC25

The National Luna Power Pack DC25 blends the convenience of a portable battery system and the performance of a DC-DC battery charger with MPPT solar regulator.  This combination results in a self-contained split-charge system that is at-home in the vehicle or in camp and can be used to power fridges, lights, pumps and other 12V appliances.

The Power Pack DC25 can be charged from a vehicle alternator, solar panels or external chargers making it versatile for a variety of applications.

Features:

• Built-in DC-DC Charger
• Built-in Battery Gauge
• 1x Solar input
• 2 x Dual USB QuickCharge ports
• 3 x DC Sockets standard (2 x Cigar, 1 x Hella)
• 2 x 50A Grey coupler plugs standard
• NL5 Intelligent Charger port (charger available separately)
• Fused Outputs
• Dimensions : 495mm x 258mm x 305mm (L x W x H)
• Max battery size : 325mm x 180mm x 280mm (L x W x H)
• Battery not included

DC-DC Features :

• True 25A output current
• 6-stage intelligent charge algorithm
• 12V and 24V input
• Smart-alternator compatible
• 25A, 375W MPPT solar regulator
• Supports solar panels up to 42V
• Supports AGM, Gel, Wet, Calcium, Lithium Ion/LiFePO4 batteries
• Battery temperature compensation for safe charging
• Short-circuit protected
• Reverse-polarity protected
• Over-voltage protected
• Over-temperature protected
• Optional remote monitor

……….    ……….
Manual Download
