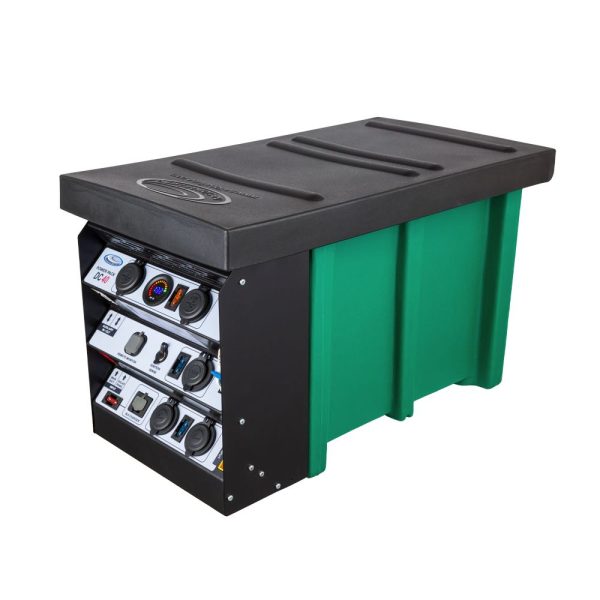

Power Pack DC40

The super-sized Power Pack DC40 takes portable power to a new level with a true 40A charge current, 600W solar regulator and additional DC input source.

Several outputs are provided including 4 x QuickCharge USB ports, standard 12V automotive sockets and 50A heavy-duty couplers.

The Power Pack DC40 can be charged from a vehicle alternator, solar panels, DC source such as wind generator or AC-DC power supply as well as external battery chargers.

Connect an optional remote display to monitor battery voltage, charge current, battery temperature and charge state.

Features:

• Built-in 40A DC-DC multi-stage charger

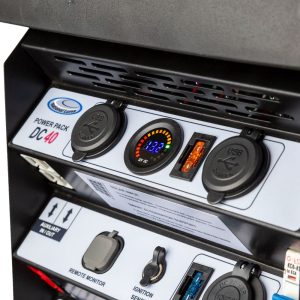

• Battery voltage gauge

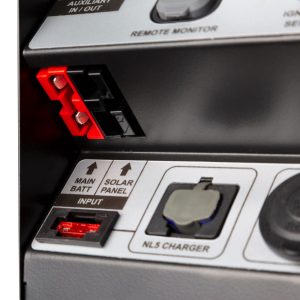

• 1 x Dedicated solar input

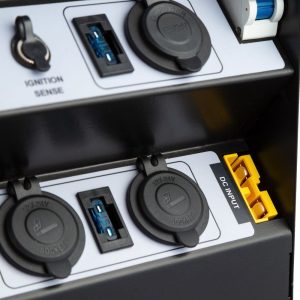

• 1 x Auxiliary DC input (for use with DC sources 11V to 32V)
• 2 x Dual QuickCharge USB modules (up to 18W per port)
• 3 x DC Sockets standard (2 x Cigar, 1 x Hella)
• 2 x 50A input/output ports

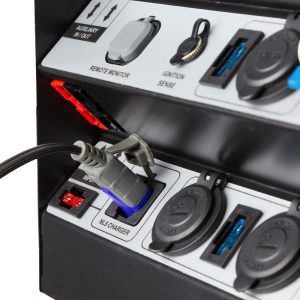

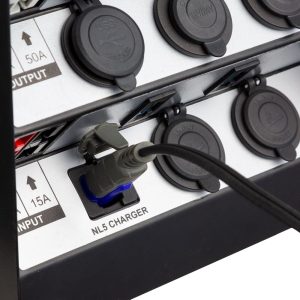

• Intelligent Charger port (charger available separately)
• Dimensions : 498mm x 280mm x 306mm (L x W x H)
• Max battery size : 325mm x 180mm x 280mm (L x W x H)
• Battery not included

DC-DC Features :

• True 40A output current
• 6-stage intelligent charge algorithm
• 12V and 24V input
• Smart-alternator compatible
• 40A, 600W MPPT solar regulator
• Supports solar panels up to 42V
• Supports AGM, Gel, Wet, Calcium, Lithium-Ion/LiFePO4 batteries
• Battery temperature compensation for safe charging
• Short-circuit protected
• Reverse-polarity protected
• Over-voltage protected
• Over-temperature protected
• Optional remote monitor

……….    ……….
Manual Download
